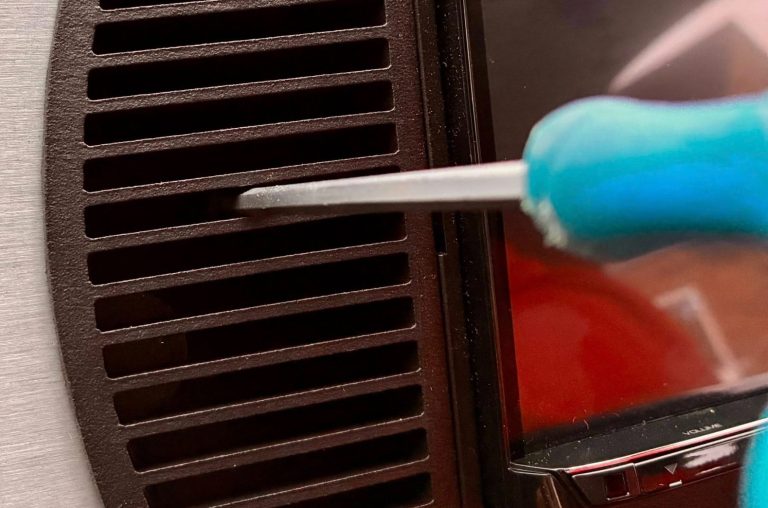

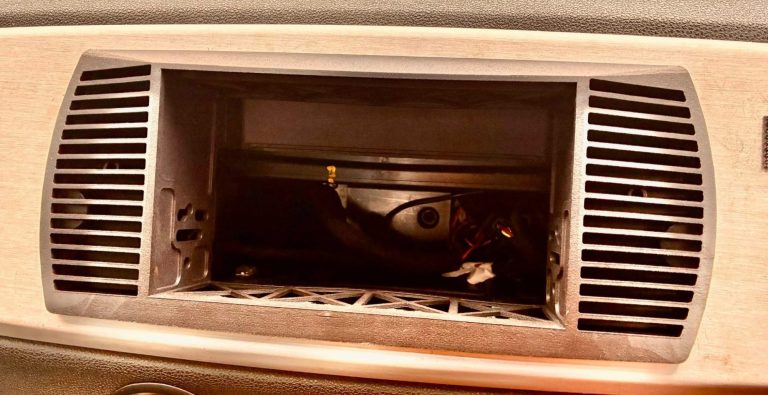

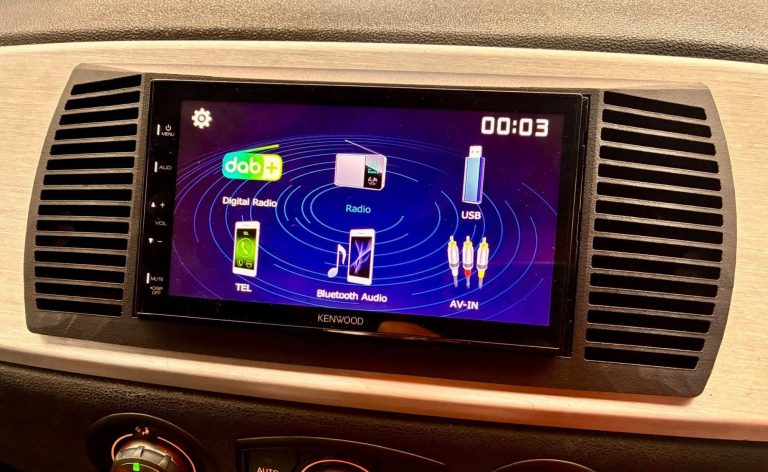

This double din facia is designed to fit a BMW Z4 (E85/E86) 2002 - 2009. It requires the removal of the factory fitted radio and air vents, and provides space for a "Short Chassis" Double Din Car Stereo unit, and redirects the air through all vent slots using the internal air directional fins built into the air passageways.

This facia provides a platform for upgrading your BMW Z4 in car entertainment to a modern high powered unit, that could provide Bluetooth Audio, Hands Free Telephone, Apple Car Play, Android Car Play, Satellite Navigation. These function will depend on the Head Unit of your choice.

The facia has been designed to accept a "Short Chassis" head unit depth of up to 110mm. There are may of these available and please refer to the Installation Guide (link below), there is a suggested range of Head Units shown on page 5.

The unit has a 1.5mm lip to overlap the factory opening, as this provides more security to the fitment, and to hide often damaged edges of this opening. This makes the front edge slightly proud of the dash, but overall a much more secure and finished product.

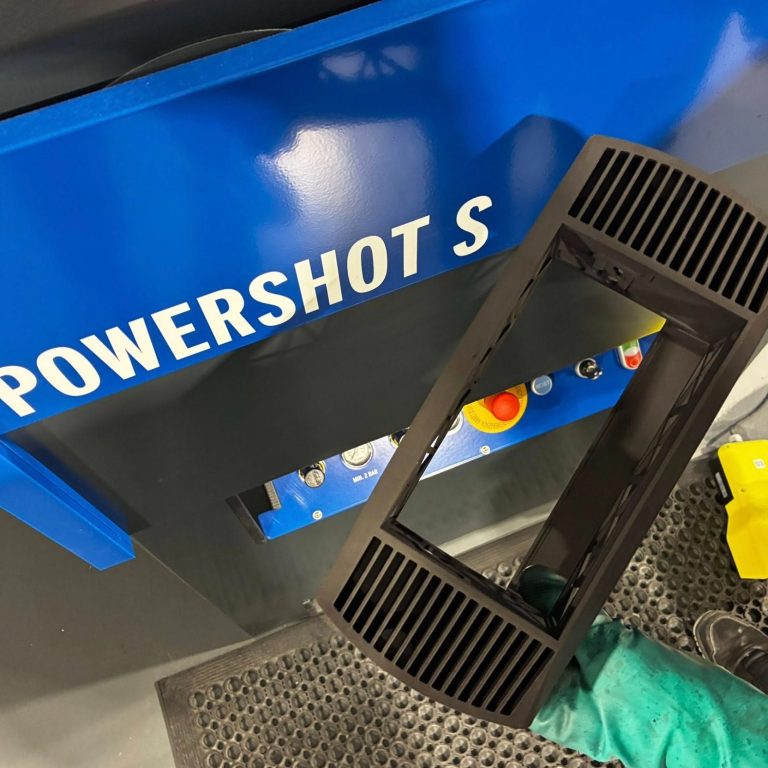

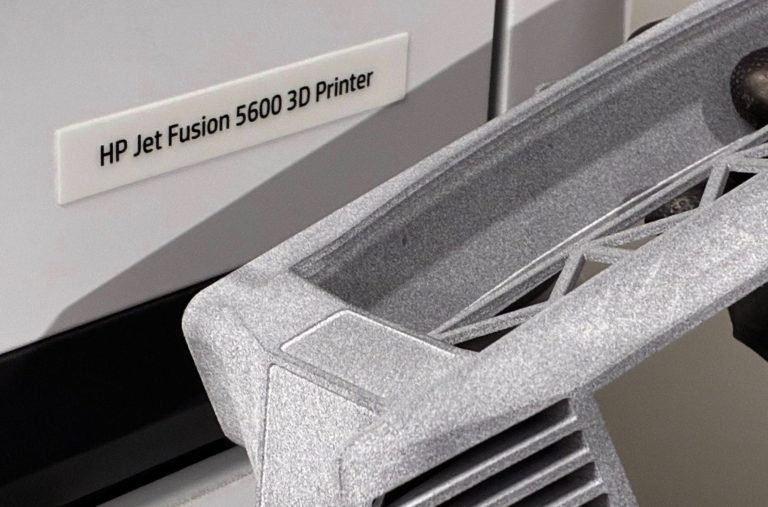

The unit is a 3D printed part using a the latest MJF printers this technology gives a finish close to a factory made injection moulded part.

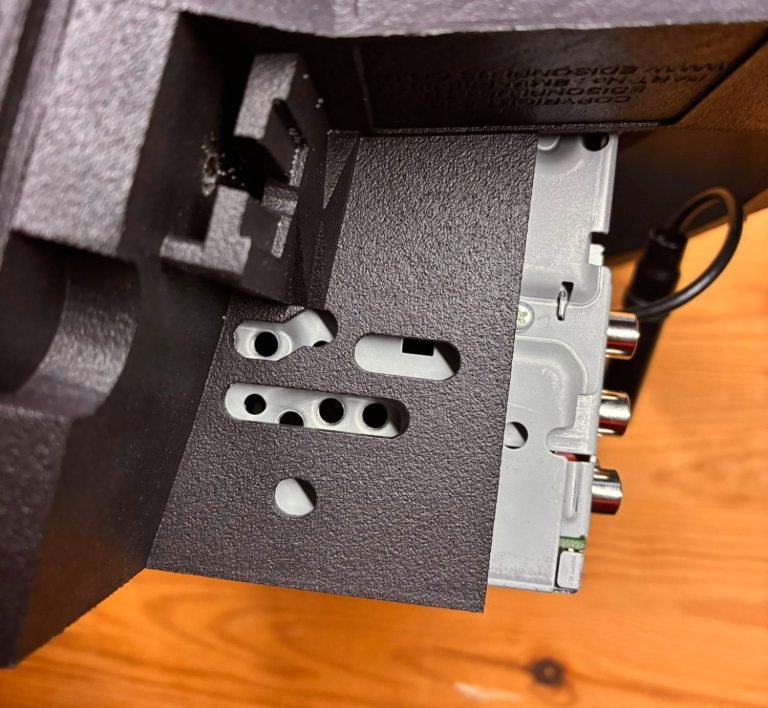

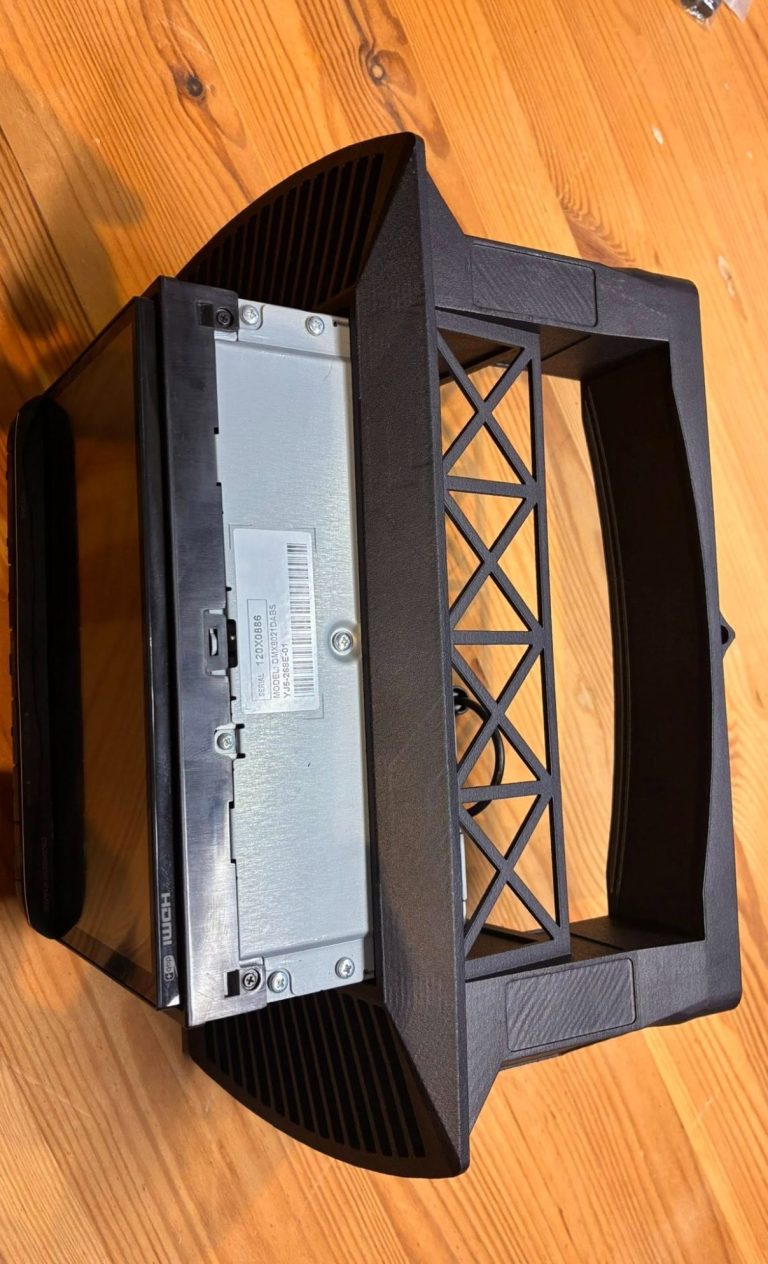

The head unit is then bolted directly into the facia chassis, through ISO provided holes without the need for the metal chassis that comes with a car head unit. The whole unit is then secured in place by the rear heater outlet, and the original mounting bolts that held in the factory radio, but are discreetly hidden.  Please note restriction on Head Units on Page 5, as not all double din head units are suitable.

Units are printed to order, and are usually dispatched with 7-10 working days from the date of the order.

These units can be shipped anywhere in the world, with P&P up to £35 depending upon final location.
